Ion-Beam Extraction from a Plasma Source

This example simulates the extraction of a high-energy ion beam from a plasma source, using the same physical setup as in this paper.

The simulation box region at \(z<0\) represents the plasma source, initially filled with a plasma of positive Deuterium ions (\(D^{+}\)) and electrons. Electrodes held at fixed electrostatic potentials extract and accelerate some of the plasma ions, forming a continuous ion beam with a final energy of approximately \(40\,\mathrm{keV}\).

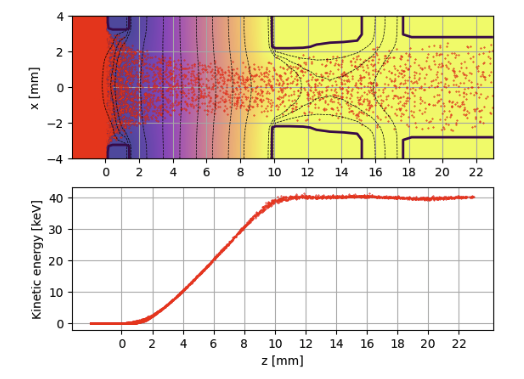

The figure below shows a color map of the electrostatic potential (\(\phi\)), with black lines indicating the electrode positions and red dots showing the \(D^{+}\) macroparticles. The bottom panel displays the kinetic energy distribution of the extracted ion beam.

Plasma Source Setup

To maintain the plasma density during beam extraction, ions and electrons are continuously injected from the simulation boundaries in the region \(z<0\). Without this boundary injection, the plasma would deplete as ions are accelerated out of the source region and particles with thermal motion are absorbed by the boundaries. The injection flux corresponds to that of a thermal plasma.

The plasma source setup consists of two components:

1. Initial plasma: At \(t=0\), the volume \(z<0\) is initialized with a thermal plasma.

2. Boundary injection: Throughout the simulation, ions and electrons are continuously injected from the \(\pm x\), \(\pm y\), and \(-z\) boundaries in the region \(z<0\).

Electrode Setup

The electrodes are implemented as embedded boundaries. In this input script, the electrode geometry is defined using an analytical expression via the parameter warpx.eb_implicit_function. Alternatively, the geometry can be defined using an STL file by setting eb2.geom_type = stl and eb2.stl_file = path/to/file.stl. For more details, see the STL geometry preparation workflow and the embedded boundary input parameters.

The electric potential on the electrodes is fixed via an analytical expression specified with the parameter warpx.eb_potential(x,y,z,t). Important: WarpX only evaluates this expression on the electrodes themselves. In the vacuum region between electrodes, WarpX’s electrostatic solver computes the potential profile, taking into account both the fixed electrode potentials and the space charge from the ions.

Run

Run this example with: warpx.3d inputs_test_3d_ion_beam_extraction. For MPI-parallel runs, prefix with mpiexec -n 4 ... or srun -n 4 ..., depending on your system.

Note

The input file uses high values for self_fields_absolute_tolerance and self_fields_required_precision, along with reduced spatial resolution and particle density, to speed up the CI test. For production runs, adjust these parameters as needed for your accuracy requirements.

Listing 46 You can copy this file from Examples/Physics_applications/ion_beam_extraction/inputs_test_3d_ion_beam_extraction.

# --- This example simulates the extraction of a high-energy ion beam from a plasma source.
# --- The simulation box region at z<0 represents the plasma source, initially filled
# --- with a plasma of positive Deuterium ions and electrons.
# --- To maintain plasma density during extraction, ions and electrons are continuously
# --- injected from the simulation boundaries in the region z<0.
# --- Electrodes held at fixed electrostatic potentials extract and accelerate some of
# --- the plasma ions, forming a continuous ion beam with a final energy of approximately 40 keV.
#############################
# User-defined constants for this problem

my_constants.ion_mass = 2*m_p # [kg] Assuming deuterium

my_constants.T_eV = 10 # [eV] Temperature of the source plasma
my_constants.source_n = 1.22e18 # [m^-3] Source plasma density

my_constants.num_particles_per_cell = 24 # [particles/cell] Number of particles per cell for the source plasma
my_constants.nx = 16 # [cells] Number of cells in the x direction
my_constants.nz = 32 # [cells] Number of cells in the z direction

my_constants.beam_energy_ev = 40e3 # [eV] Beam energy, used to estimate the timestep
my_constants.beam_beta = sqrt(2*beam_energy_ev*q_e/ion_mass)/clight # [-] Beam velocity
my_constants.vth_i = sqrt(T_eV*q_e/ion_mass) # [m/s] Thermal velocity of the ions
my_constants.vth_e = sqrt(T_eV*q_e/m_e) # [m/s] Thermal velocity of the electrons
my_constants.device_length = 23e-3 # [m]
my_constants.beamlet_spacing = 8e-3 # [m]
my_constants.num_beamlets = 1 # set odd number of beamlets
my_constants.device_width = num_beamlets * beamlet_spacing  # [m]
my_constants.shift = (1-cos(num_beamlets*pi)) * 0.5 * beamlet_spacing # get shift depending on even/odd number of beamlets

my_constants.wpe = sqrt(source_n*q_e*q_e/m_e/epsilon0)

# The pressure of *molecular* deuterium is 5.2 mTorr
# To get the density, we convert to Pascals, and use the ideal gas law with an assumed 300K
#my_constants.gas_temperature = 300 # [K]
#my_constants.gas_density = 5.2*0.133322/(1.380649e-23*gas_temperature) # m^-3

warpx.self_fields_absolute_tolerance = 1e-1
warpx.self_fields_required_precision = 1e-1

#############################
# Simulation time
max_step = 1000
stop_time = 2.8*device_length/beam_beta/clight # 9*device_length/beam_beta/clight
# For numerical stability, the timestep needs to resolve the electron plasma frequency
# (more specifically, dt < 2/wpe)
my_constants.dt = 1.95/wpe
warpx.const_dt = dt

#############################
# Grid
amr.n_cell = nx nx nz
amr.max_level = 0
amr.max_grid_size = 256
geometry.dims = 3

geometry.prob_lo = -device_width/2 -device_width/2 -2e-3
geometry.prob_hi =  device_width/2  device_width/2 device_length

boundary.particle_lo = absorbing absorbing absorbing
boundary.particle_hi = absorbing absorbing absorbing

#############################
# Algorithms:
algo.particle_shape = 3

# - Without space charge
#algo.maxwell_solver = none
#boundary.field_lo = pec pec pec
#boundary.field_hi = pec pec pec

# - With space charge
warpx.do_electrostatic = labframe
boundary.field_lo = neumann neumann pec
boundary.field_hi = neumann neumann neumann
boundary.potential_lo_z = 0
warpx.eb_implicit_function = "r = sqrt((abs(fmod(abs(x) + 0.5 * shift, beamlet_spacing) - 0.5 * beamlet_spacing))**2 + (abs(fmod(abs(y) + 0.5 * shift, beamlet_spacing) - 0.5 * beamlet_spacing))**2);
if(((z>17e-3) and (r>2.5e-3)) or ((z<2e-3) and (z>0) and (r>3e-3)) or ((z>9.5e-3) and (z<15.5e-3) and (r>2e-3) and (r>2e-3+0.125*(z-11.5e-3))),
1, -1 )"
warpx.eb_potential(x,y,z,t) = "-40e3*(z>16e-3) - 41e3*(z>9e-3)*(z<16e-3)"

#############################
# Create species

# Some calculation to properly inject particles
my_constants.dx = device_width/nx
my_constants.dz = (device_length + 2e-3)/nz
my_constants.particle_weight = source_n * dx * dx * dz / num_particles_per_cell
my_constants.flux_i = source_n * vth_i / sqrt(2*pi) # Flux of a thermal plasma through a wall
my_constants.flux_e = source_n * vth_e / sqrt(2*pi) # Flux of a thermal plasma through a wall

particles.species_names = Dplus electrons
Dplus.injection_sources = initial_Dplus injected_Dplus_xm injected_Dplus_xp injected_Dplus_ym injected_Dplus_yp injected_Dplus_zm
Dplus.mass = ion_mass
Dplus.charge = q_e
# Initial fill
Dplus.initial_Dplus.injection_style = NRandomPerCell
Dplus.initial_Dplus.num_particles_per_cell = num_particles_per_cell
Dplus.initial_Dplus.zmax = 0
Dplus.initial_Dplus.profile = constant
Dplus.initial_Dplus.density = source_n
Dplus.initial_Dplus.momentum_distribution_type = gaussian
Dplus.initial_Dplus.ux_th = vth_i/clight
Dplus.initial_Dplus.uy_th = vth_i/clight
Dplus.initial_Dplus.uz_th = vth_i/clight
# Injection from -z
Dplus.injected_Dplus_zm.injection_style = = NFluxPerCell
Dplus.injected_Dplus_zm.surface_flux_pos = -2e-3
Dplus.injected_Dplus_zm.flux_normal_axis = z
Dplus.injected_Dplus_zm.flux_direction = 1
Dplus.injected_Dplus_zm.num_particles_per_cell = flux_i*dx*dx*dt/particle_weight # Number of particles injected per timestep, per cell
Dplus.injected_Dplus_zm.flux_profile = constant
Dplus.injected_Dplus_zm.flux = flux_i
Dplus.injected_Dplus_zm.momentum_distribution_type = gaussianflux
Dplus.injected_Dplus_zm.ux_th = vth_i/clight
Dplus.injected_Dplus_zm.uy_th = vth_i/clight
Dplus.injected_Dplus_zm.uz_th = vth_i/clight
# Injection from -x
Dplus.injected_Dplus_xm.injection_style = = NFluxPerCell
Dplus.injected_Dplus_xm.surface_flux_pos = -device_width/2
Dplus.injected_Dplus_xm.flux_normal_axis = x
Dplus.injected_Dplus_xm.flux_direction = 1
Dplus.injected_Dplus_xm.zmax = 0
Dplus.injected_Dplus_xm.num_particles_per_cell = flux_i*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
Dplus.injected_Dplus_xm.flux_profile = constant
Dplus.injected_Dplus_xm.flux = flux_i
Dplus.injected_Dplus_xm.momentum_distribution_type = gaussianflux
Dplus.injected_Dplus_xm.ux_th = vth_i/clight
Dplus.injected_Dplus_xm.uy_th = vth_i/clight
Dplus.injected_Dplus_xm.uz_th = vth_i/clight
# Injection from +x
Dplus.injected_Dplus_xp.injection_style = = NFluxPerCell
Dplus.injected_Dplus_xp.surface_flux_pos = device_width/2
Dplus.injected_Dplus_xp.flux_normal_axis = x
Dplus.injected_Dplus_xp.flux_direction = -1
Dplus.injected_Dplus_xp.zmax = 0
Dplus.injected_Dplus_xp.num_particles_per_cell = flux_i*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
Dplus.injected_Dplus_xp.flux_profile = constant
Dplus.injected_Dplus_xp.flux = flux_i
Dplus.injected_Dplus_xp.momentum_distribution_type = gaussianflux
Dplus.injected_Dplus_xp.ux_th = vth_i/clight
Dplus.injected_Dplus_xp.uy_th = vth_i/clight
Dplus.injected_Dplus_xp.uz_th = vth_i/clight
# Injection from -y
Dplus.injected_Dplus_ym.injection_style = = NFluxPerCell
Dplus.injected_Dplus_ym.surface_flux_pos = -device_width/2
Dplus.injected_Dplus_ym.flux_normal_axis = y
Dplus.injected_Dplus_ym.flux_direction = 1
Dplus.injected_Dplus_ym.num_particles_per_cell = flux_i*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
Dplus.injected_Dplus_ym.zmax = 0
Dplus.injected_Dplus_ym.flux_profile = constant
Dplus.injected_Dplus_ym.flux = flux_i
Dplus.injected_Dplus_ym.momentum_distribution_type = gaussianflux
Dplus.injected_Dplus_ym.ux_th = vth_i/clight
Dplus.injected_Dplus_ym.uy_th = vth_i/clight
Dplus.injected_Dplus_ym.uz_th = vth_i/clight
# Injection from +y
Dplus.injected_Dplus_yp.injection_style = = NFluxPerCell
Dplus.injected_Dplus_yp.surface_flux_pos = device_width/2
Dplus.injected_Dplus_yp.flux_normal_axis = y
Dplus.injected_Dplus_yp.flux_direction = -1
Dplus.injected_Dplus_yp.zmax = 0
Dplus.injected_Dplus_yp.num_particles_per_cell = flux_i*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
Dplus.injected_Dplus_yp.flux_profile = constant
Dplus.injected_Dplus_yp.flux = flux_i
Dplus.injected_Dplus_yp.momentum_distribution_type = gaussianflux
Dplus.injected_Dplus_yp.ux_th = vth_i/clight
Dplus.injected_Dplus_yp.uy_th = vth_i/clight
Dplus.injected_Dplus_yp.uz_th = vth_i/clight

electrons.injection_sources = initial_electrons injected_electrons_xm injected_electrons_xp injected_electrons_ym injected_electrons_yp injected_electrons_zm
electrons.mass = m_e
electrons.charge = -q_e
# Initial fill
electrons.initial_electrons.injection_style = NRandomPerCell
electrons.initial_electrons.num_particles_per_cell = num_particles_per_cell
electrons.initial_electrons.zmax = 0
electrons.initial_electrons.profile = constant
electrons.initial_electrons.density = source_n
electrons.initial_electrons.momentum_distribution_type = gaussian
electrons.initial_electrons.ux_th = vth_e/clight
electrons.initial_electrons.uy_th = vth_e/clight
electrons.initial_electrons.uz_th = vth_e/clight
# Injection from -z
electrons.injected_electrons_zm.injection_style = = NFluxPerCell
electrons.injected_electrons_zm.surface_flux_pos = -2e-3
electrons.injected_electrons_zm.flux_normal_axis = z
electrons.injected_electrons_zm.flux_direction = 1
electrons.injected_electrons_zm.num_particles_per_cell = flux_e*dx*dx*dt/particle_weight # Number of particles injected per timestep, per cell
electrons.injected_electrons_zm.flux_profile = constant
electrons.injected_electrons_zm.flux = flux_e
electrons.injected_electrons_zm.momentum_distribution_type = gaussianflux
electrons.injected_electrons_zm.ux_th = vth_e/clight
electrons.injected_electrons_zm.uy_th = vth_e/clight
electrons.injected_electrons_zm.uz_th = vth_e/clight
# Injection from -x
electrons.injected_electrons_xm.injection_style = = NFluxPerCell
electrons.injected_electrons_xm.surface_flux_pos = -device_width/2
electrons.injected_electrons_xm.flux_normal_axis = x
electrons.injected_electrons_xm.flux_direction = 1
electrons.injected_electrons_xm.zmax = 0
electrons.injected_electrons_xm.num_particles_per_cell = flux_e*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
electrons.injected_electrons_xm.flux_profile = constant
electrons.injected_electrons_xm.flux = flux_e
electrons.injected_electrons_xm.momentum_distribution_type = gaussianflux
electrons.injected_electrons_xm.ux_th = vth_e/clight
electrons.injected_electrons_xm.uy_th = vth_e/clight
electrons.injected_electrons_xm.uz_th = vth_e/clight
# Injection from +x
electrons.injected_electrons_xp.injection_style = = NFluxPerCell
electrons.injected_electrons_xp.surface_flux_pos = device_width/2
electrons.injected_electrons_xp.flux_normal_axis = x
electrons.injected_electrons_xp.flux_direction = -1
electrons.injected_electrons_xp.zmax = 0
electrons.injected_electrons_xp.num_particles_per_cell = flux_e*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
electrons.injected_electrons_xp.flux_profile = constant
electrons.injected_electrons_xp.flux = flux_e
electrons.injected_electrons_xp.momentum_distribution_type = gaussianflux
electrons.injected_electrons_xp.ux_th = vth_e/clight
electrons.injected_electrons_xp.uy_th = vth_e/clight
electrons.injected_electrons_xp.uz_th = vth_e/clight
# Injection from -y
electrons.injected_electrons_ym.injection_style = = NFluxPerCell
electrons.injected_electrons_ym.surface_flux_pos = -device_width/2
electrons.injected_electrons_ym.flux_normal_axis = y
electrons.injected_electrons_ym.flux_direction = 1
electrons.injected_electrons_ym.zmax = 0
electrons.injected_electrons_ym.num_particles_per_cell = flux_e*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
electrons.injected_electrons_ym.flux_profile = constant
electrons.injected_electrons_ym.flux = flux_e
electrons.injected_electrons_ym.momentum_distribution_type = gaussianflux
electrons.injected_electrons_ym.ux_th = vth_e/clight
electrons.injected_electrons_ym.uy_th = vth_e/clight
electrons.injected_electrons_ym.uz_th = vth_e/clight
# Injection from +y
electrons.injected_electrons_yp.injection_style = = NFluxPerCell
electrons.injected_electrons_yp.surface_flux_pos = device_width/2
electrons.injected_electrons_yp.flux_normal_axis = y
electrons.injected_electrons_yp.flux_direction = -1
electrons.injected_electrons_yp.zmax = 0
electrons.injected_electrons_yp.num_particles_per_cell = flux_e*dx*dz*dt/particle_weight # Number of particles injected per timestep, per cell
electrons.injected_electrons_yp.flux_profile = constant
electrons.injected_electrons_yp.flux = flux_e
electrons.injected_electrons_yp.momentum_distribution_type = gaussianflux
electrons.injected_electrons_yp.ux_th = vth_e/clight
electrons.injected_electrons_yp.uy_th = vth_e/clight
electrons.injected_electrons_yp.uz_th = vth_e/clight

#############################
# Add diagnostics
diagnostics.diags_names = diag1 bound
diag1.intervals = 1000
diag1.fields_to_plot = rho Ex Ey Ez phi eb_covered rho_electrons rho_Dplus
diag1.diag_type = Full
diag1.format = openpmd

bound.diag_type = BoundaryScraping
bound.format = openpmd
bound.intervals = -1
Dplus.save_particles_at_zhi = 1
bound.dump_last_timestep = 1

#############################

Visualize

The provided plotting script reads the output diagnostics in openPMD format and generates plots of:

• The electrostatic potential

• The ion beam macroparticles

• The ion beam energy distribution

The script also verifies that the particle energy tail is within a relative tolerance of the target energy of \(40\,\mathrm{keV}\).

Listing 47 You can copy this file from Examples/Physics_applications/ion_beam_extraction/analysis_ion_beam_extraction.py.

#!/usr/bin/env python3


import sys

import matplotlib.pyplot as plt
import numpy as np
from openpmd_viewer import OpenPMDTimeSeries
from scipy.constants import c, e

filename = sys.argv[1]
ts = OpenPMDTimeSeries(filename)

# Plot the ion beam and electric potential at iteration `iteration`.
# Also checks if particle energies are within relative tolerance of target_energy_keV.
iteration = 1000

eb_covered, info = ts.get_field("eb_covered", iteration=iteration, slice_across="y")
phi, info = ts.get_field("phi", iteration=iteration, slice_across="y")
plt.subplot(2, 1, 1)
extent = np.concatenate((info.imshow_extent[2:], info.imshow_extent[:2]))
plt.imshow(
    phi.T,
    cmap="plasma_r",
    vmin=-40e3,
    vmax=0,
    aspect="auto",
    interpolation="bilinear",
    extent=1e3 * extent,
    origin="lower",
    alpha=0.7,
)

# Plot ions
xp, zp, uxp, uyp, uzp, mp = ts.get_particle(
    ["x", "z", "ux", "uy", "uz", "mass"], species="Dplus", iteration=iteration
)
plt.plot(1e3 * zp, 1e3 * xp, "r.", ms=0.8)
plt.ylabel("x [mm]")
plt.xticks(2 * np.arange(12))
plt.grid()

# Plot contours
phi_levels = list(
    [-41e3 + i * 0.3e3 for i in range(1, 4)]
    + [-34e3 + i * 5e3 for i in range(7)]
    + [-1e3 + i * 0.3e3 for i in range(1, 5)]
)
plt.contour(
    phi.T, extent=1e3 * extent, levels=phi_levels, linewidths=0.5, colors="black"
)
plt.contour(eb_covered.T, extent=1e3 * extent, levels=[0.8], linewidths=2)

# Plot kinetic energy
plt.subplot(2, 1, 2)
energy_keV = 0.5 * mp * c * c * (uxp**2 + uyp**2 + uzp**2) / e / 1e3
plt.plot(1e3 * zp, energy_keV, "r.", ms=0.8)
plt.xlabel("z [mm]")
plt.ylabel("Kinetic energy [keV]")
plt.xticks(2 * np.arange(12))
plt.grid()
plt.ylim(0, 50)
plt.xlim(-2, 23)

mask = (zp * 1e3 >= 14) & (zp * 1e3 <= 23)  # zp*1e3 [mm]
target_energy_keV = 40  # kEv
rel_error_energy = np.abs(energy_keV[mask] - target_energy_keV) / target_energy_keV
tolerance = 0.05

assert np.all(rel_error_energy < tolerance), (
    "Particle energy tails is NOT within the relative tolerance of target_energy_keV!"
)
